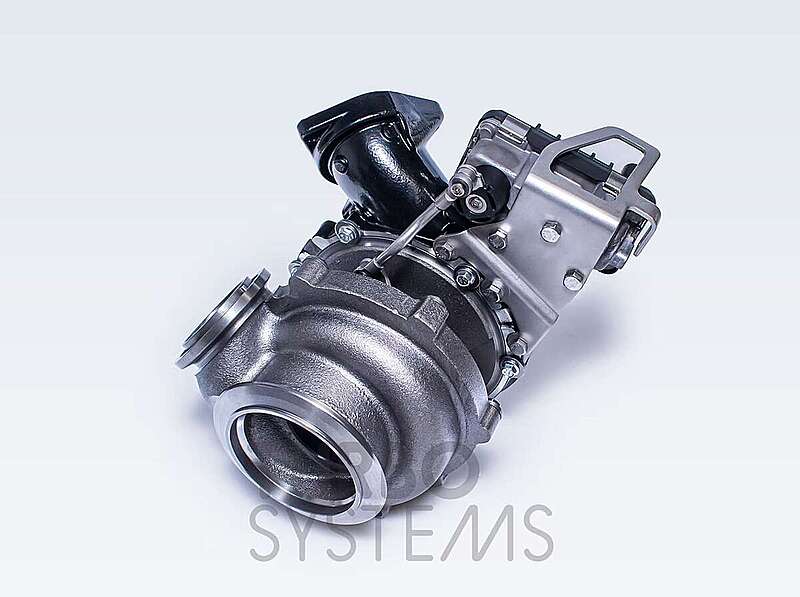

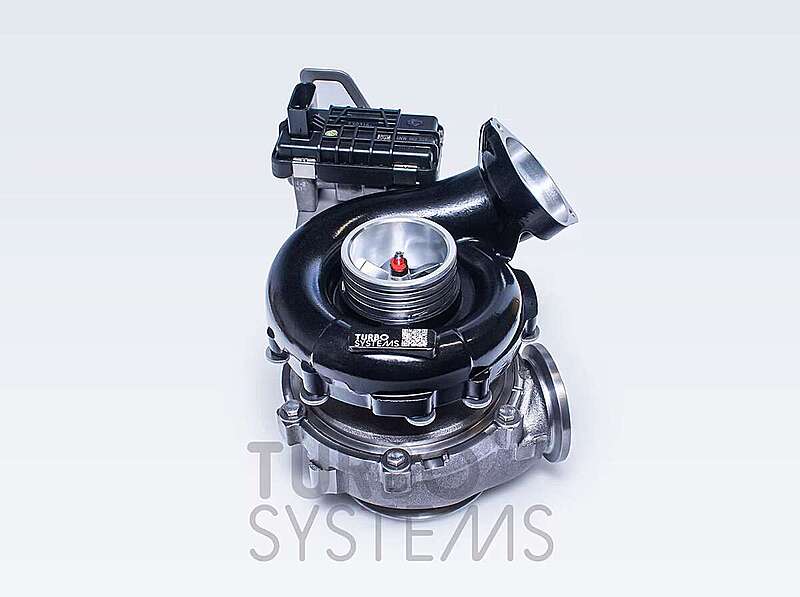

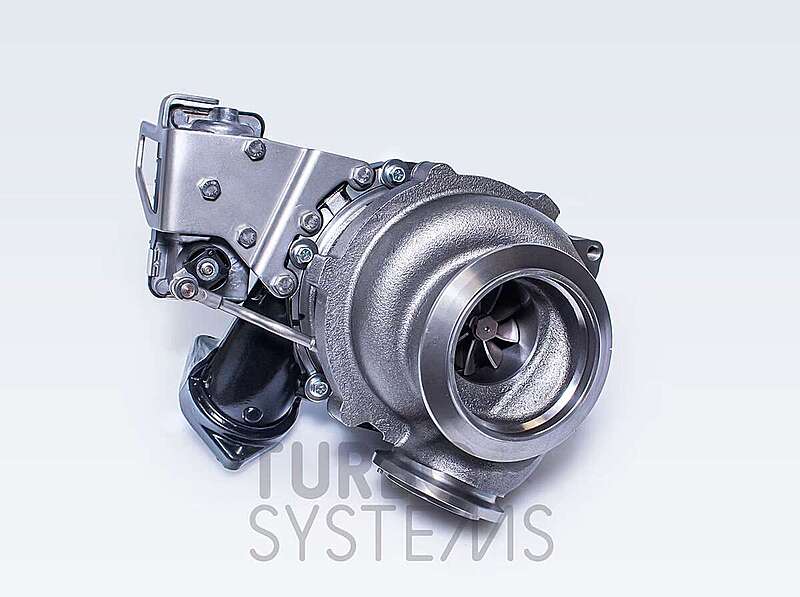

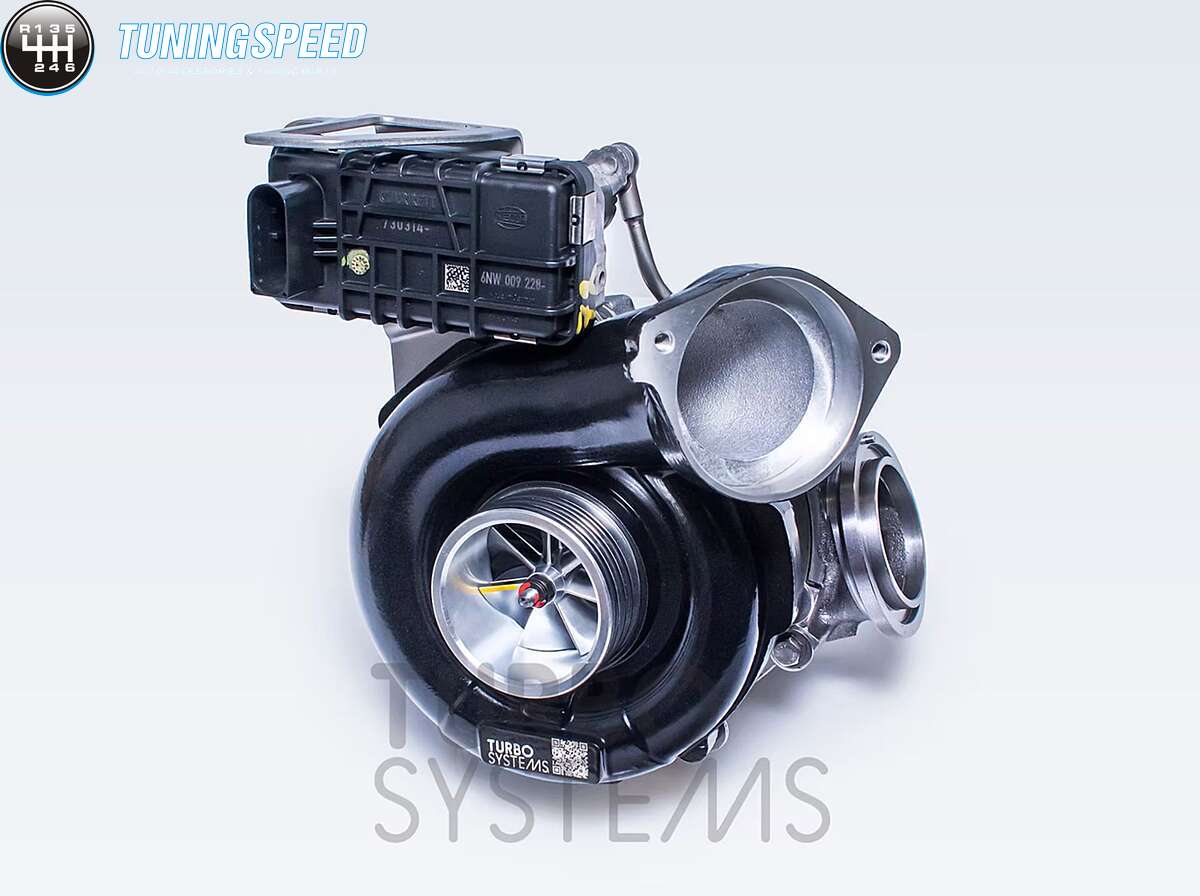

Turbosystems Upgrade Turbocharger Stage 5 Ball Bearing BMW E9x / E6x / E7x M57N2

Home / Mercancía / BRANDS / TURBOSYSTEMS / Turbosystems Upgrade Turbocharger Stage 5 Ball Bearing BMW E9x / E6x / E7x M57N2
Turbosystems Upgrade Turbocharger Stage 5 Ball Bearing BMW E9x / E6x / E7x M57N2
Turbosystems Upgrade Turbocharger Stage 5 Ball Bearing BMW E9x / E6x / E7x M57N2

Turbosystems Upgrade Turbocharger BMW E9x / E6x / E7x M57N2

Stage 2 (HTD2872):

  • Upgraded bearing system;
  • CNC machined compressor housing;
  • CNC machined turbine housing;
  • OEM variable geometry nozzle;
  • reinforced bigger machined from the solid compressor wheel — 50/72mm;
  • bigger turbine wheel — 51/49mm;
  • Refurbished housings;
  • Flow bench adjusted;
  • Balanced on VSR;

Power range: up to 400HP



Stage 2 (HTD2872BB):

  • dual ceramic ball bearing;
  •  CNC machined compressor housing;
  • CNC machined turbine housing;
  • OEM variable geometry nozzle;
  • reinforced bigger machined from the solid compressor wheel — 50/72mm;
  • bigger turbine wheel — 51/49mm;
  • Refurbished housings;
  • Flow bench adjusted;
  • Balanced on VSR;

Power range: up to 400HP



Stage 3 (HTD3073BB):

  • dual ceramic ball bearing;
  • CNC machined compressor housing;
  • CNC machined turbine housing;
  • Custom variable geometry nozzle;
  • reinforced bigger machined from the solid compressor wheel — 54/73mm;
  • bigger turbine wheel — 58/54mm;
  • Refurbished housings;
  • Flow bench adjusted;
  • Balanced on VSR;

Power range: 420+HP



Stage 4 (HTD3279BB):

  • Big dual ceramic ball bearing;
  • Enlarged shaft (6mm diameter) and turbine wheel;
  • CNC machined compressor housing;
  • CNC machined turbine housing;
  • Custom variable geometry nozzle;
  • Reinforced bigger machined from the solid compressor wheel — 56/79mm;
  • High flow design turbine wheel — 58/56mm;
  • Refurbished housings;
  • Flow bench adjusted;
  • Balanced on VSR;

Please note that this Stage 4 turbocharger should be used only for professionals. Upgraded intake system as well as performance downpipe and custom software is required in order to achieve the best results.

Power range: 490+HP

BMW E9x (325d / 330d) version:


BMW E9x (325d / 330d) version:

Model Year Engine code Power (KW / HP) Garrett nr. OEM nr.
BMW 325 d (E90/E91/E92/E93) 2007 — 2010 M57306D3 145 / 197

758352-5026S

758352-x

11657796312
BMW 330 d (E90/E91/E92/E93) 2005 — 2007 M57306D3 170 / 231

758352-5026S

758352-x

 11657796312

BMW 330 xd (E90/E91/E92)

 2005 — 2007 M57306D3 170 / 231

758352-5026S

758352-x

 11657796312



BMW E6x (525d / 530d / 730d) version:

Model Year Engine code Power (KW / HP) Garrett nr. OEM nr.
BMW 525 d (E60 / E61) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 525 d (E60 / E61) 2007-2010 M57D30UL 145 / 197 758351-x 657794260
BMW 525 xd (E60 / E61) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 525 xd (E60 / E61) from 2007 M57N2 173 / 235  758351-x 657794260
BMW 530 d (E60 / E61) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 530 d (E60 / E61) from 2007 M57N2 173 / 235  758351-x 657794260
BMW 530 xd (E60 / E61) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 530 xd (E60 / E61) from 2007 M57N2 173 / 235 758351-x 657794260
BMW 730 d (E65 / E66) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 730 d (E65 / E66) from 2007 M57N2 173 / 235 758351-x 657794260
BMW 730 ld (E65 / E66) 2005-2007 M57N2 170 / 231 758351-x 657794260
BMW 730 ld (E65 / E66) from 2007 M57N2 173 / 235 758351-x 657794260



BMW E7x (3.0d) version:

Model Year Engine code Power (KW / HP) Garrett nr. OEM nr.
BMW X5 3.0 d (E70) from 2007 M57306D3 173 / 235 765985-x 11657796314
BMW X6 30 dx (E71) from 2008 M57306D3 173 / 235 765985-x

11657796314
